One of the other key differences is that some of the code is now cached. The idea is that instead of doing all the file includes and the meta layer processing each time when the PHP is executed, these are all saved to the cache which then saves on execution speed while allowing for greater modularity of the source files without impacting performance. In effect the dynamic configuration that allows flexible control over the site layout which is achieved through the new meta layer, is effectively compiled in the cache.
Another key change is that nearly all of the text in the code has now been moved out to configurable XML files. This change in theory, makes it easier to customise Oscailt for different languages as it just requires the text in the XML files to be changed rather than going through all the code. There are other configurable aspects of Oscailt which are controlled by these XML files too such as certain options or components active in various instances of configurable and displayable modules.
Along with this document, there are a companion set of automatically generated html files produced by
phpDocumentator 1.3.0
which is a freeware PHP tool that can analyse PHP code and extract out all the classes and functions and
the class relationships or hierarchy.
Note: These have yet to be checked into cvs.

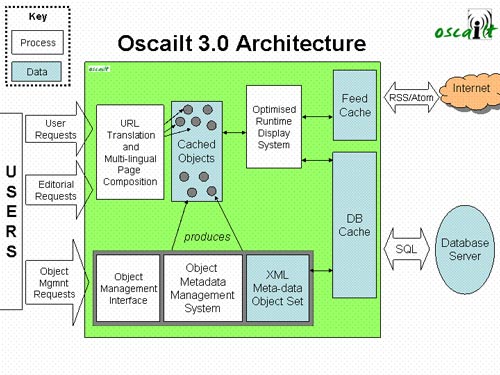

As with trying to understand any code base, there are many ways to view it, in terms of the functionality that you are interested in and what perspectives you take. For example you could look at it from the perspective of how an incoming request is handled, or in terms of the internal data representation in terms of objects. Another possibility is to look at it from the html or site configuration points of view. When one is able to understand the code from multiple angles then you are in a strong position to make the most far reaching changes. The diagrams below attempt to give some insight to these layers.
It produces cached versions of every object on the site. The 'displayable' objects - menus, pages, bars and inset boxes are specially cached to include cached versions of all their contained objects within their cache file. This limits the number of includes that are used at runtime as each page only has to include its menus, bars etc, the objects contained in these objects are contained within the cache files themselves.
The modules in the system are designed to produce as much static html as possible. Calls to the runtime system are only invoked where statically caching is impossible (due to automatic changes of contents such as in newswires). Suffice to say that Oscailt makes every attempt possible to limit the amount of code that is executed at runtime.
As with many sites, the layout and placement of banners, titles, stories, text and links is controlled through careful use of HTML tables. So in order to understand the layout, it is important to be familiar with HTML tables. It ought to be noted that when HTML was originally specified, tables were never intended to be used for layout purposes but instead were primarily for presenting data, but that's history.
| Fig 3: Oscailt General Page HTML Layout | ||
|---|---|---|
| Menu Bar (can include banner) | ||
| Side Bar with links search and other options |
Page Content Can be: Newswire Article Event listing |
Local/Global Newswire Bar (on certain pages) |
| Footer Bar with text and optional other banners / images | ||
One of the most important consequences of this is that it imposes a certain order on how the HTML is generated. So for example, the code needs to generate the header section first, followed by the right menu, then the centre, then the left menu if included and lastly the footer. In theory this order could be changed by storing the blocks of generated HTML and re-ordering but in reality no one is likely to code it that way and it would also happen to make it both much harder to understand and to debug since if certain critical HTML tags are not closed, it can mean the entire page is not rendered properly by the web browser.
In fact this is one of the main reasons why the public are not allowed publish stories with HTML tags in them except for a few basic ones, because it would be so easy to break the overall HTML of the page and would require significant human effort to continually fix it.
It is clear though that the original rule about the order of outputting the HTML from the server is still valid and holds in this case.
The object id for the page layout is stored in the cache file for the original target page as $PAGE_LAYOUT_ID and this is how Oscailt, then determines which cached page to load for the associated page layout.
ob_start(); -start the buffering of output
.
.
.
ob_end_flush();
There are two additional PHP commands for buffering that are interest and these are:
ob_end_clean() . This can be used for clearing the contents of
the output buffer, but continuing in buffer mode. The second command is:
ob_get_contents() and would usually be used in conjunction with the
previous command. It can be used for storing the contents of the buffer so far into a variable.
A typical scenario of the way Oscailt uses this feature would be the following code snippet.
ob_start();
.
.
.
$PAGE_CONTENTS = ob_get_contents();
ob_end_flush();
.
.
include("header.inc");
echo $PAGE_CONTENTS;
include("footer.inc"); -There is no need for a final ob_end_flush() because script termination does that.
This method can be used to set the HTML title tag of a page which goes in the HTML HEAD section
because the story title can be got first and then a variable set and used in the header generation
(e.g. in header.inc to set the title.
So you could configure for example two versions of the newswire module, where the first might be for press releases and the second for news stories. The layout of each could then be different on the site by associating each of them with a different layout page.
And this is where the modules form the bridge or connection with the layout elements. For the Indymedia Ireland site as of 2006, there are 5 basic layout elements:
For the other layout objects there are similarly numerous different versions configured for them too. To help explain this the diagram below attempts to illustrate these relationships for the case of the article view page layout. This is not an exact copy of any known site but it is close enough and serves our purpose here.

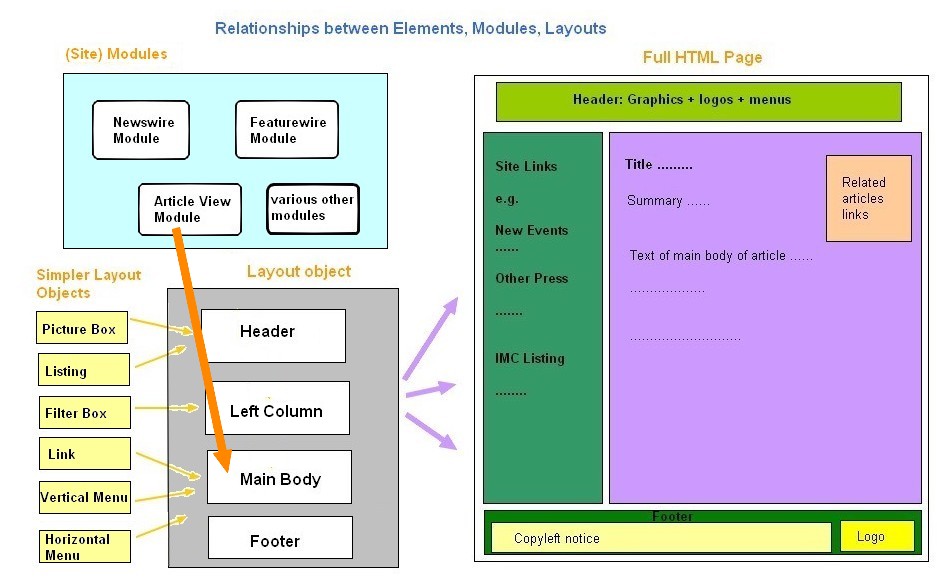

In the diagram above, the layout object shows only a Header, Left Column, Main Body and Footer boxes, but ideally the example should include boxes for left-column and right-column.
For the other layout types, the options will be a bit different, but the general design approach is the same.

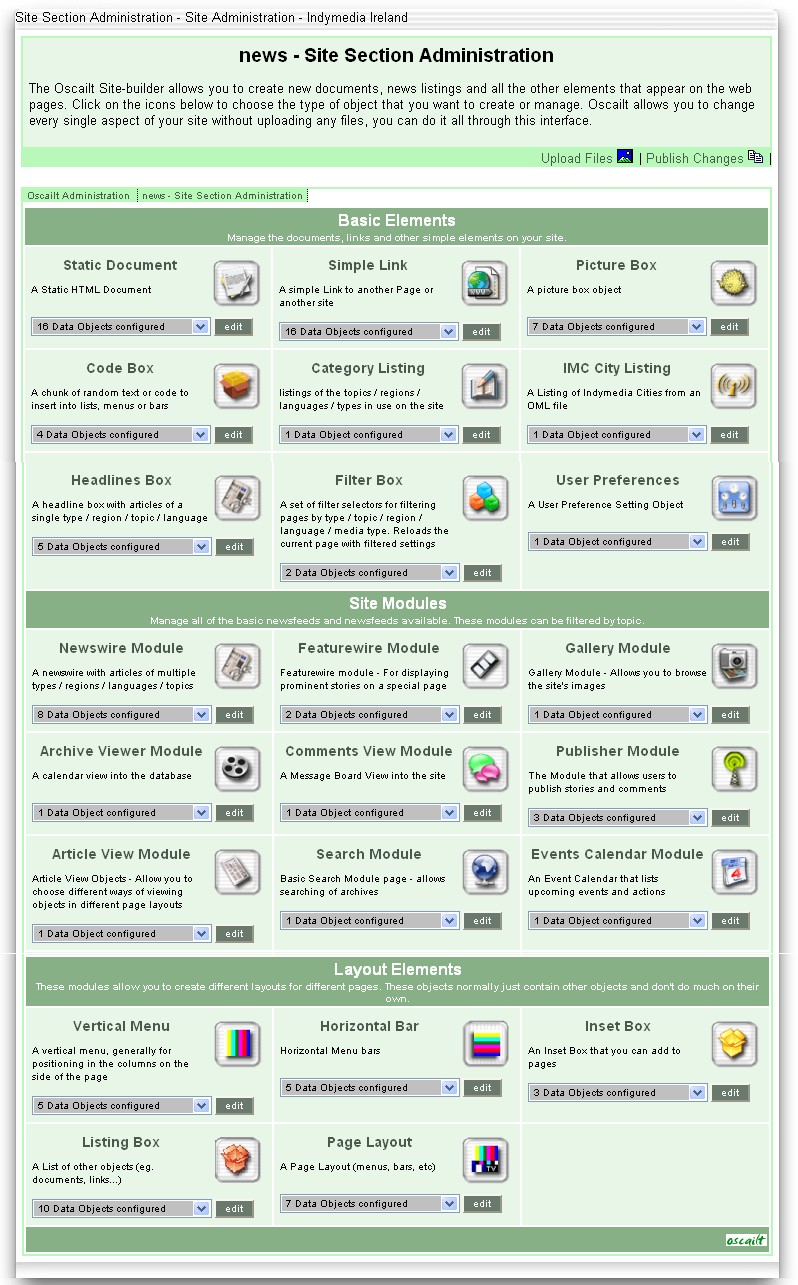

In the page layout administration page for the page object, the selection for the main body is not for the main contents of the page, but for selecting things like the embedded 'code box'. To specify the main contents of the page, you actually have to include or reference the page layout from the module. So in the example above, in the configuration for the article view module there is an option for Page Layout that is a drop-down list box and it contains a list of all the defined versions of Page Layout that you have created for the site. So in effect, the layout -article view page sits there on it's own and is linked to by various modules. So for any of the newswire or feature modules, you would also select a page layout to use there.
It should be noted that this is really only one half of the functionality of the element, module and layout objects because the displayable parts are implemented in the runtime classes. These are described later in a later section.
So the basic directory and file structure for the elements and modules is:
-- html
|
|____ objects
| |
| |
| |____ indyobjects Files: indybasicobject.inc, indysitemodule.inc, indyobject.inc
| |
| |
| |______ indydataclasses
| Files: indyarchive.inc indyarticle.inc indybar.inc indybox.inc
| indycategorylist.inc ...... indysearch.inc indysite.inc
|
|____ xmldata
|
|_____ indydatatypes Files: archive.xml article.xml bar.xml basic.xml box.xml
categorylist.xml ...... search.xml site.xml
The purpose of the code listed in the files (above) is to implement the interface with the administrative layout
of these objects and the building of the cached file versions of them. They contain the code that generates
the code to startup and instantiate the corresponding runtime displayable objects of themselves including
the setting of any parameters and settings and the subsequent calls to display them.
Clearly then to add any new functionality or changes to the Oscailt code requires both understanding and following this design pattern. However the benefits are that a fair amount of code is available for re-use.
One can also think of these objects as also being stored in .inc files in the form of the code cache, where they take the form of the generated code for displaying themselves, although it is not really useful here.

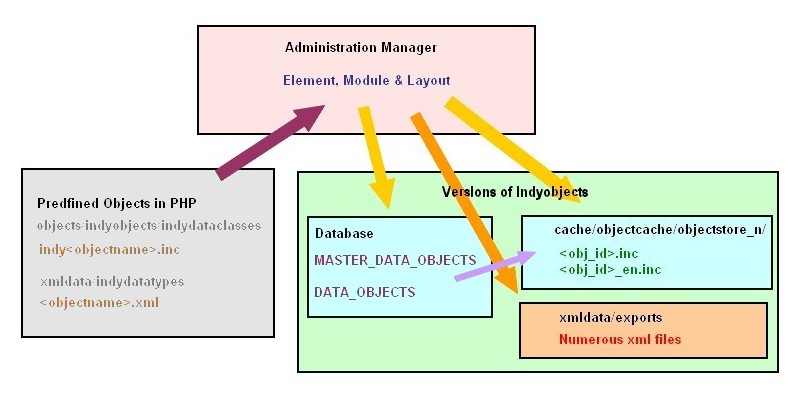

An attempt to illustrate the storage in the diagram below. Every instance of an object is stored in the MASTER_DATA_OBJECTS table and then any language specific ones are stored in the DATA_OBJECTS table. So for example, if there are three different language versions, say a English, French and Spanish version, then there will be 3 entries in the DATA_OBJECTS table for that object id but only one in the MASTER_DATA_OBJECTS.
For more details on this area, see the discussion in administration section below.

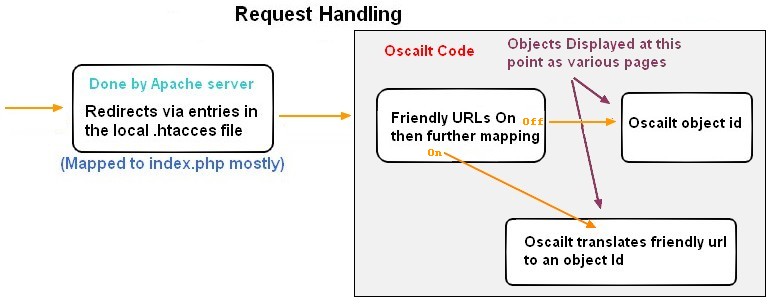

In Oscailt 3.x this has changed so that most requests are sent through the index.php file and they can then optionally, depending on the Oscailt configuration, be internally mapped. This is what is illustrated below.
The purpose of the Friendly URLs is to make this mapping easier. Therefore it is not really an option to not use them as it makes things harder otherwise. If you do not want to use friendly urls, then you would also have to turn off the rewrite directives in the .htaccess file because what you would have to do is have URLs like:
www.indymedia.ie?obj_id=59 for say the newswire andObviously users will not remember this. You could still map these in the .htaccess file by mapping say: newswire to obj_id=59 but that would not be very portable and it is external to Oscailt too.
www.indymedia.ie?obj_id=71 to the features page.
So hence the idea of friendly URLs was to keep this mapping internal to Oscailt and allow it to be managed from there, so long as all requests are mapped to the index.php page. So at the moment something like the newswire gets re-mapped by Apache via a directive in .htaccess to index.php?redirect=newswire. This is done automatically from the rule in .htaccess (Check the default .htaccess file in the Oscailt cvs or installation.)
RewriteRule ^(.*)$ index.php?redirect=$1 [QSA]This rule appears after all the other rules for mapping the admin pages and basically says: If none of the other rules are matched then all other URL requests have this rule applied.
As already mentioned above, many of the administration URLs are NOT mapped to index.php and remain directed to their respective php files like: admin.php, viewsitelog.php All the site layout and module definition functionality is handled through admin.php requests using a relatively large set of request parameters.
Given the object id, the code can now load up the object from the code cache for this id. This leads us naturally onto the next section on the code cache below.
Whenever a change is made to one of the modules the system will continue using the version in the code cache. Therefore the entry has to be refreshed and this is the purpose of the re-cache option that is available in the administration section where modules can be edited. When you update a module it will ask you do you want to update it to the live site. This simply means do you want to automatically update the code cache for that particular module. Sometimes re-cache is referred to as re-publish.
The contents of any given code cache file, depend on the module type cached. If it is a page layout object, it will contain code to include the code cache files for the top menu bar, the right and left columns, any insets in the central section and an include for the footer cache. The page layout also uses the $PAGE_CONTENTS variable and outputs that as part of it's stream at the point where it has reached the central section. This is after the top bar and left column have been generated. After the central section also known as the main body is outputted (or generated), then the right column and then footer are done. It basically follows the sequence for drawing the table in chapter 3.
The cache files for the other modules like the newswire module will contain generated PHP code to create an instance of the newswire module and then further calls to that object which will set all the values selected in the administration layout pages for that module. It will also have the code to call the display() function of the newswire module.
The code cache will also contain additional code for checking whether an editor is logged, so as to display additional data.
In the code it is implemented in the indyObjectSet class in the functions rebuildCaches(), updateObjectCaches() and buildObjectCacheFiles. The first function is used for building the full code cache of a site, whereas the last one does most of the real work. A 'site' contains objects and would Oscailt you can define your website into different sites mainly for the sake of just organising your objects. For example RSS feeds could be defined in a RSS site.
When the cache is being built it has to ensure the directory is created, determine whether there are language specific versions to be built, and check whether it references a page layout object. If it does, then it has to get the object id of the page layout object and load it, and call the fill() function of the indyPage class. Otherwise it calls the getHTML() function of it's own class. This returns generated PHP code for instantiating itself, setting values and calling display functions.
( object_number / 50) - 1The idea is to spread the objects out into several directories rather than have hundreds in one directory.
So for an object id of '2', this becomes: cache/objectcache/objectstore_0/2.inc and for object id '52', it is cache/objectcache/objectstore_1/52.inc.
The directory structure is shown here for clarity.
-- html
|____ attachments
|____ cache
| |_______ objectcache
| |_______ objectstore_0 (for objects ids 1 - 49 )
| |_______ objectstore_1 (for objects ids 50 - 99 )
| |_______ objectstore_2 (etc )
| |_______ ...
| |_______ objectstore_n
|____ ....
|____ graphics
|____ logs
|____ objects
|____ xmldata
So for example for the object with an object id = 14, there will be two files present named 14.inc and 14_en.inc where the 14.inc will contain just one line which includes the other file 14_en.inc when only one language is in use for that object.
If there was an English (en) and Spanish (es) version of this object, then you would have three files:
14.inc
14_en.inc
14_es.inc
The code now in the 14.inc file would have to check the language type (got in the
request) and then based on the result load the appropriate language specific version. Thus the code is now:
global $userLanguage;
$langCode = $userLanguage->getLanguageCodePrefix();
if($langCode=="es")
include("cache/objectcache/objectstore_0/14_es.inc");
else
include("cache/objectcache/objectstore_0/14_en.inc");
The more languages then the more if-statements.
The use of the code cache is controlled by the setting of the system configuration parameter use_live_objects which defaults to false, so that the code cache is used by default. If the code cache is not in use, then the sequence of execution through the index.php file is different because it has to load the objects directly and get them to generate their combined blobs of HTML and PHP and then execute that. The key object that handles that mode of execution is the indyObjectManager class with a call to the method (function) getLiveObjectHTML doing most of this work.
After that a function call is made to getRequestTargetObjectID to retrieve the object id out of the redirect mapping (see section above on Friendly URLs).
The first cache file is always a display runtime module like a newswire, feature, article, event or a static page. This must have a variable called $PAGE_LAYOUT_ID defined and set in it and this is the object id of the page layout in which this displayable page sits.
It is important to note that as each file is included the PHP code in it is executed at that point.This cache file will very likely include multiple include statements in it for including the top menu/banner, the left and right columns, any inset objects and the footer. These are all objects in their own right and therefore have cache files of their own.
The final task of index.php is to include the s these up from oscailt_destroy.inc to close any database connections and footer.inc to simply output the final closing BODY and HTML tags of the page.When operating in live mode, these steps are postponed until this point and effectively (see below), it is the calls to indyObjectManager and indyObjectManager->getLiveObjectHTML that implement the sequence of execution effectively done for the re-publish stage during site layout. So understanding the execution in live mode, is really the same as understanding the generation of the cache.
The main sequence of execution in summary form then are:
1. Get Obj Id or default it from system config value.
When operating in cache mode (Default Case)
2. Get the path and filename for that object id
3. Include the cached file of that object id and execute the PHP in it.
4. The cached file holds a value for the PAGE_LAYOUT_ID (of the layout module used by the original Obj Id)
5. Get the path and filename for the value of the PAGE_LAYOUT_ID
6. Include the header.inc file which contains the HEAD tag for the page.
7. Include this second cached file for the PAGE_LAYOUT_ID and execute it.
8. Include oscailt_destory.inc to close the database connection.
9. Include footer.inc to close the final HTML tags
Finished
When NOT operating in cache mode
2. Create instance of indyObjectManager
3. Call indyObjectManager->getLiveObjectHTML with Obj Id.
--- Inside getLiveObjectLive() ---
4. Create indyObjectSet
5. Call indyObjectSet->load
6. Check indyObjectSet->containsObject -it should.
7. Fetch the original input object id via a call to indyObjectSet->fetchObject
If it can't fetch it an error is thrown.
8. Get the Page Layout reference for this via a call to indyObjectSet->getPageLayoutRef
Note: This object is of type indyBasicObject or at least one inherited from it.
See the class relationships below for more background to this.
9. If a valid Page Layout reference was returned in step 8. and is of type 'page'
THEN
i. Get the layout object for this layout reference via a call to indyObjectSet->fetchObject
ii. Retrieve object 'stub' via call to obj_set->itemcollection[]
iii. Get site Id (from stub)
iv. Get object html via a call to $layout_obj->fill($indy_obj, $this->obj_set, $site_id, true);
v. Return object html retrieved above back to index.php
--- Outside getLiveObjectLive() ---
10. Evaluate the HTML + PHP blobs returned above.
---- Now do the same all over again except using the $PAGE_LAYOUT_ID to access the page layout objects.
11. Create instance of indyObjectManager
12. Call indyObjectManager->getLiveObjectHTML with $PAGE_LAYOUT_ID
--- Inside getLiveObjectLive() ---
Do same steps as 4. to 8. except 9. will not return a valid page reference since the current
object is one. It will then do instead:
13 Call getHTML() using $this->obj_set as a parameter. This will call a cascade of getHTML() function
calls for the full object set. -i.e. the set of all objects contained in the page which means
the top bar, left and right columns, insets and footer objects.
14. Return object html retrieved in step 13.
--- Outside getLiveObjectLive() ---
15. Execute the returned html (see note below) retrieved in either step 14 via a call to PHP eval
16. Include oscailt_destory.inc to close the database connection.
17. Include footer.inc to close the final HTML tags
Finished
Note: This HTML returned is not really HTML. It is more a case of a mixture of PHP code and
HTML and as pointed out in step 15, it is then executed via the PHP function eval. One of the
reasons this is done is because since a given page is composed of objects, -i.e. a particular layout object
containing various modules and elements, it is necessary to build up the PHP code to deal with this, because
this can't be determined in advance since all the pages can be dynamically rather than
statically built.
So the high level sequence of execution in a certain sense is:
In the case of a request like:
- Run the PHP for dealing with the meta level of finding the correct layout object and getting all the contained modules and elements.
- Create the PHP code that will execute these objects, retrieve data and display data.
- Execute the PHP in step 2. to generate the HTML for the client.
www.indymedia.ie/article/83112 which is a request to a particular story 83112The article is mapped via friendly URLs to it own object id, say 53. The first code cache file which will be 53_en.inc will contain the PHP code to create an instance of the ArticleDisplay class and the value of the variable of the $PAGE_LAYOUT_ID will be set to the ObjId of the PAGE module used. The 83112 part of the request is then used later by the instance of ArticleDisplay to retrieve the corresponding story from the database and display it.
It should be noted that other instances of the ArticleDisplay module created in the layout
section of the Administration screens can be assigned to different page layout modules.
The files are broadly organised according to what they do, by the directories where they reside.
html -This directory contains index.php and many of the basic administration functionality files.
| It also includes various header and footer files and other miscellaneous files.
|
--------- config - Self explanatory.
|
|
--- objects -This directory generally retains the core functionality as in Oscailt 2.x for story,
| | comment, attachment, calendar, editor functionality (as in related to managing stories
| | and comments) and other things like utilities and database and system config.
| |
| |
| |
| --- indyobjects - This contains core functionality and most of the abstract classes too.
| | | These classes or objects are used to pull everything together and one of
| | | the main objects indyObjectManager is used in live mode by index.php
| | | and it is used heavily in the object layout administration pages along with
| | | the other classes implemented here.
| | |
| | |
| | ------ indydataclasses
| | - This contains files like indyarchive.inc, indyarticle.inc
| | generally of the form indyModuleName.inc
| | The are used for helping generate the object settings in the cache files
| | and form a link between the object layout administration and the runtime side.
| |
| |
| --- indyruntime - This contains the runtime display functionality for all of the displayable modules,
| | like newswire, articles, events etc.
| |
| |
| --- feedexport - This contains the files for implementing RSS and Atom feeds and their display.
| |
| --- magpie - Files from the Magpie code base used for parsing RSS files.
|
|
--------- xmldata
|
--- indydatatypes - These contain XML definitions of all the configurable object types;
| elements, nodules and layouts. These files can be language specific
| to enable different language versions of the object layout administration
| pages.
|
--- itemcache - These contain tiny files for defining the text and icon to use for the
list of editorial action buttons for edit, hide, delete, etc.
They are here because they can be made language specific.
Only the html and config directories contain .php
files and all the others contain .inc files.
The files in the directory indydataclasses generally only contain supporting classes and methods usually for handling things in the display aspect such as titles and strings of various kinds. They also they tend to all follow the class inheritance tree of:
indyObject
indyBasicObject -This is one of the main classes.
indySiteModuleObject
The full set of classes can be found in the class tree generated by the phpDocumentator 1.3.0 that was run against the Oscailt source code.
Note:The code needs to be updated with tags readable by phpDocumentator to describe what each class and function does and which phpDocumentator will then be able to use in its output
The overall structure which is common to object oriented design is to create a few basic and relatively abstract classes and to derive more useful ones from those thereby building up the functionality. For a quicker primer on classes and object design see section Appendix A - Some Background on Objects, Classes, Functions and Methods below.
Note: Some files may define and implement two or more classes each.
displayObject
|
|------- contactDisplay
|------- feedimportDisplay
|------- filterDisplay
|------- preferencesDisplay
|------- siteFilteredDisplay
|
|----------- categorylistDisplay
|----------- commentsDisplay
|----------- eventsDisplay
|----------- feedExportDisplay
|----------- managingDisplay
| |
| |---------- newswireDisplay
| | |
| | |--------- archiveDisplay
| | |--------- attachmentBearingDisplay
| | |
| | |--------- articleDisplay
| | |--------- featureDisplay
| |---------- galleryDisplay
|
|
|----------- publishDisplay
|----------- searchDisplay
Any classes with 'feed' in the name generally refer to the RSS related functionality. A glance at the above
tree would indicate that siteFilteredDisplay, managingDisplay and
newswireDisplay are the most important ones to understand since other classes
are derived from them.
The siteFilteredDisplay class handles the filters that can be used on displays like the newswire and stories. These filters are the language, topic, region and (story) type
The managingDisplay class handles functionality related to managing the display object, some of which relates to editor management. This covers things like the ability to edit, hide, unhide, clip, delete and lock. It also covers the display of any of the related 'confirm' type dialogue boxes related to these actions. It works in conjunction with the class itemAction. The key functions in managingDisplay are:
managingDisplay->processRequest() -calls processRequest() of displayObject first and then executes
it the code in it's own implementation of this function.
When an editorial action is confirmed (.e.g. hide), then this function will
make a call execute() in class itemAction.
->getItemActions() -this function generates and returns the HTML code for display the editorial
actions for edit, hide, delete etc.
The newswireDisplay class deals largely with displaying headlines and story summaries and their associated details on the newswire. This means most of its methods (functions) are concerned with writing headers, footer, links, titles, summaries etc. It has to make calls to retrieve the stories and other calls for getting attachments and generating thumbnails (of images). The most significant functions are:
newswireDisplay->display() -This is the main function used for the newswire module(s) and it calls
in turn thses functions -the lesser ones have been left out for clarity
->setQueryOptions()
->query->execute() - This executes the SQL query to retrive the story data.
->writeNewswireHeader()
->writeStorySummaries()
->writeNewswireFooter()
->retrieveHeadlines() -this function is only used by the headlineBox module
One might expect the two classes articleDisplay and featureDisplay to be derived from managingDisplay directly, but for some reason (not yet clear why) they are not. It seems that since they both can display attachments, then they need to include that functionality so they extend the attachmentBearingDisplay class.
The class attachmentBearingDisplay is used when displaying stories and comments to display the attachments. Attachments cover images, video and audio. It will look after any of the associated links and text, including editorial actions like edit, hide, delete etc. The key functions to be aware of are:
attachmentBearingDisplay->writeAttachmentList() -handles a list of attachments. Default is up to 5.
->writeAttachmentLinks() -writes the link info for each attachment.
The Story and StoryQuery classes originate from Oscailt 2.x and are at the very core of the original Oscailt design. In this regard then, the key classes at the very heart of Oscailt are:
To clarify further how the runtime classes are called, a code fragment from one of the cache files is shown below. It should be remembered that the first code cache file loaded will be a displayable module. In this example below it is for object id which in this case is a featureModule. For a newswire module the first line would be: new newswireDisplay instead.
$site_module = new featureDisplay(54);
$site_module->setFilters(Array("*"), Array("*"), Array("*"), Array("1"), Array(""));
$object_display_settings = Array of object ids and object names.
$site_module->setSiteSettings($object_display_settings);
$site_module->setAdminOptions(Array( ... of titles, labels, flags and other text settings and their values...));
$site_module->setUserOptions(Array( ... of module options set in layout phase, consists of values and booleans ...));
$site_module->processRequest();
In this group, the root class is: indyObject and all these classes are defined and implemented in the files of similar name in the directories objects/indyobjects and objects/indyobjects/indydataclasses.
indyObject
|
|------- o AdminPageObject
|------- o indyBasicObject
| |---------- + indyCitylistObject
| |---------- + indyCodeboxObject
| |---------- + indyContentObject
| |---------- + indyDocumentObject
| |---------- + indyLinkObject
| |---------- + indyListObject
| | |------------ # indyMenuObject
| | | |---------- * indyBarObject
| | | |---------- * indyBoxObject
| | |
| | |------------ # indyPageObject
| |
| |---------- + indyPictureboxObject
| |---------- + indySiteModuleObject
| | |------------ # indyArchiveObject
| | |------------ # indyArticleObject
| | |------------ # indyCategorylistObject
| | |------------ # indyCommentsObject
| | |------------ # indyContactObject
| | |------------ # indyEventsObject
| | |------------ # indyFeedexportObject
| | |------------ # indyFeedimportObject
| | |------------ # indyFilterboxObject
| | |------------ # indyGalleryObject
| | |------------ # indyHeadlineboxObject
| | |------------ # indyNewswireObject
| | | |
| | | |---------- * indyFeatureObject
| | |
| | |------------ # indyPreferencesObject
| | |------------ # indyPublishObject
| | |------------ # indySearchObject
| |
| |------------ + indySiteObject
|
|------- o indyDataCollection
|------- o indyDataType
|------- o indyDataTypeSet
|------- o indyImportExport
| |
| |---------- + indySiteExporter
| |---------- + indySiteImporter
|
|------- o indyItemSet
|------- o indyObjectActionRequest
|------- o indyObjectManager
|--------o indyObjectNameCache
|--------o indyObjectRef
|--------o indyObjectSet
|--------o indyObjectStub
You can browse these classes and view the functions named contained in them by viewing the
class tree generated by the phpDocumenator.
The root class indyObject has very little in it and merely contains some functions for setting and writing error messages, but they are in this class because they are needed by all the other indy classes.
There are far more classes derived from the base class here than from the displayObject class in the runtime classes group. For these classes, it is worth concentrating on the AdminPageObject, indyBasicObject, indyObjectActionRequest and indyObjectManager. The AdminPageObject is covered later in the section on Administration functionality.
Some of the functions in this create javascript, HTML form data and options, hidden variables in HTML forms, various table headers and footers used in the administration site layout display. It also details with lists in a generic way.
For example the class indyMenuObject derived from it has just two methods which are the constructor: indyMenuObject() and getHTML(). The getHTML method as with most other versions of this function in other objects is used for returning a mixture of HTML and PHP code. This is usually what gets cached. In this case for the menu object. A typical use then would be say for the case of the front page which is composed of various objects. It appears the indyObjectManager is used to load all the objects contained or that go to make up this page and for each of these the getHTML method is called and then that can be used to display the HTML for each of those objects thereby solving the dynamic configuration problem.
So the beginnings of how the relationships exist between the objects via the layout and module configuration can now be seen on how this is reflected in the code and the way the code caching works and the caches for each object are included.
The class indySiteModule has functions for generating PHP stubs (or fragments of code) that go in the code cache and are used as part of the site layout configuration in the administration system. The classes derived from it have few functions too but nearly all implement the following methods.
getPageSettingArray
getFullPageSettingPHP -This generally calls the next two functions
assembleUserOptionString
assembleAdminOptionString
getHTML
In fact, the bulk of the functionality is back in indyBasicObject class.
The functions in the class are primarily used for getting, loading and writing. and are used to pull everything together and as the name suggests, it manages objects. The main purpose of this object is to allow multiple objects to be loaded and manipulated and that can be for display when used in live mode through the file index.php or for executing the main tasks of the dynamic configuration in the administration module layout screens or even for the import and export functionality.
It has a number of functions for helping with the drawing/generating of the main administration page that has all the dropdown lists for the module layout configuration. One such function is: writeIntroPage
$obj_man = new indyObjectManager( Parameters ); $result = $obj_man->getLiveObjectHTML( target_indyobject_id );If it is working in the default mode using cached objects, then there is no need to invoke indyObjectManager because including the cascade of code cache files does what indyObjectManager is designed to do, which is to load up objects, and any objects contained by them, manage them and then retrieve the PHP-HTML code blocks which in turn are executed to display the pages.
$obj_man = new indyObjectManager( Parameters ); $result = $obj_man->processRequest( site_options );When an instance of indyObjectManager is created, it always creates an instance of the indyObjectActionRequest class. The main purpose of this class is to figure out from the multitude of options or parameters passed in the URL from within the site layout screens so as to determine the next course of action.
In the layout screens, the combination of URL options and form parameters are what allows the system to proceed to next step whether that is to preview a module, save it, or update the display because some option was ticked, or label filled in.
The (admin layout) actions covered by this class are: edit, view, xmlview, translate, list, create, delete, recache, import, export, site-recache, site-files
It is used in conjunction with the indyObjectSet class in the adminpage.inc file.
html
|
--- objects
|
--- indyobjects
|
------ indydataclasses
Examples are:
indynewswire.inc and indymenu.inc. They have two
main roles. The first is to act as a template for building the code cache for each instance of that particular
class and the second reason is that since this code executes, it has to do something and that is, it contains
functions for getting all the settings especially for things like section titles, descriptions, labels and other
option values. They typically have variables and functions like the following but can and do include other
additional ones.
var display_options;
var runtime_requires; -This is usually the PHP 'require' for the corresponding runtime object.
Example: indyEventsObject requires eventsDisplay.inc
get_SomeAction_PHP()
getDefaultDisplayMode()
getFullPageSettingPHP()
getHTML()
-- calls ----> getPHPBaseString() -contains the code fragment:
$basic_php_tmpl_str = $req_php_str .
' $site_module = new [@[@0]@]('.$this->id().');
$site_module->setFilters[@[@1]@];
$object_display_settings = [@[@2]@];
$site_module->setSiteSettings($object_display_settings);
';
For example we can have getPHPBaseString('eventsDisplay', param2, param3) and within
that function it creates the string basic_php_tmpl_str which later gets evaluated when the code cache
fragment is executed. But not shown in the fragment above, the next step is to substitute the @ symbols for
the input strings. Thus in the example it is the mechanism that will eventually create the text (that appears
in the code cache file):
$site_module = new eventsDisplay(52);The same type of substitution applies to the other lines.
Recall that all these classes are derived from indyBasicObject or the indySiteModuleObject class above and alot of the implementation is actually coded in those classes.
The itemAction class implements the displaying, security and process request handling for each of the story and attachment editorial actions like: clip, delete, hide, unhide, featurize, and so on. Some of its important functions are:
itemAction->getOptionalHTML() -Used for returning the HTML to display the action button and link.
->execute() -Handles the request and calls executeOne for each action in multi actions
It also handles the send email notifications and writing to the editorial log.
->executeOne() -Implements the functionality for the action like hide, delete, upgrade etc.
->getConfirmMessage() -Returns the HTML to draw the confirm box.
| Class | Overview |
|---|---|
| Attachment | Implements all loads, saves, deletes and any other actions related to attachments |
| Calendar | Draws the calendar and generates the URLs for the Archives |
| Comment | Handles key functions for comments like load, save, load comment attachments and editorial actions of comments like hide, unhide comments, delete, upgrade to story, move to story. |
| Story | Similar to comments but also lock, unlock, stick, unstick, get and set (story) topic, region and type. Get, load and delete comments, attachments etc. |
| StoryQuery | Handles all story related SQL queries and dynamically builds the query for a whole range of options. Used by newswire particularly. |
| Region | Loads, saves, deletes regions and handles lists of them |
| Topic | Loads, saves, deletes topics and handles lists of them |
| Type | Loads, saves, deletes types and handles lists of them |
These are implemented in files of similar name largely in the objects directory.
Clearly some data is more configurable than others and in the former case above, this merges in with the functionality offered (i.e dynamic layout) to the other extreme where it is generally ill advisable to change certain parameters unless there have been relatively major code changes to justify it. Somewhere in the middle then are the main configurable parameters which are most accessible for change and these are held in two separate files which happened to be named the almost same but reside in different directories. They are: html/objects/systemconfig.inc and html/config/systemconfig.php. The bulk of the parameters are in the first file. About half of these can be modified using the administration Edit Configuration interface/screen. The rest have to be modified by editing the files on the host Unix system.
In general those parameters which can be modified by the administration edit-configuration page can be read and written to the database. The rest are just hard coded.
Example of configuration data which almost will never change unless there are code changes that require it are the data in the directory html/config/ in the files: attachments.php, datamodules.php, notification_levels.php and permissions.php
When the request involves a update of some kind then a connection will be made since the cache is only for reads. For more information on the database cache, see section 8.1.1 Database Cache below.
With MySQL when you open a database connection it defaults to using autocommit mode. This means that after each SQL statement that would require a commit, an automatic commit is carried out. If the SQL statement results in any kind of error then that statement is rolled back.
| Table Name | Table Description |
|---|---|
| Defined in Oscailt 2.x | |
| TOPICS | contains list of allowable story topics and their assigned ids. |
| REGIONS | same as TOPICS except for regions -i.e. counties. |
| TYPES | contains list of story types. (Feature, news, press release, opinion, event) |
| LANGUAGES | same as for TYPES except languages, also stores language codes. |
| STORIES | contains story contents and all other associated data. |
| COMMENTS | contains comment contents and all other associated data |
| ATTACHMENTS | contains file paths to all image and audio files. Indexed by tables STORIES and COMMENTS |
| EDITORS | modified in 3.1 for new columns: editor_lastlogin and editor_details |
| CONFIGURATION | controls number of allowable images, audio files per story, per comment, site name, newswire query length etc |
| Defined in Oscailt 3.0 | |
| EDITOR_ROLES | |
| ROLES | |
| ROLE_PERMISSIONS | |
| MASTER_DATA_OBJECTS | stores the master copy of created objects. |
| DATA_OBJECTS | stores language specific versions of each created object. |
| EDIT_LOCKS | |
| BANNED_IPS | modified in 3.1 for new column: begin_ban |
| Defined in Oscailt 3.1 | |
| BANNED_AUTHORS |
The use and structure of the tables is not complicated at all. The Editors, Roles and Permission tables obviously form an interrelated set and this can be worked out by reading about Editor Permissions and Roles further on in this document.
The MASTER_DATA_OBJECTS and DATA_OBJECTS structure is also very simple, but on their own they won't make much sense. To understand the objects more and how they are stored, it is best to read the section: Storage of the Elements, Modules and Layout Objects.
For an understanding of the TOPICS, REGIONS, TYPES, STORIES, COMMENTS and ATTACHMENTS tables, the original design notes for Oscailt 2.x will be more than adequate and besides their structure is very clear. Only the ATTACHMENTS table will need some closer examination to see how it relates to the STORIES and COMMENTS tables and this is indicated in the diagram to the right. COMMENTS are obviously directly related to STORIES.
Likewise before any object can be modified by an editor, Oscailt checks to see if the object is already locked. The locks are cleared when the editor saves the object or specifically releases the lock. This option to release the lock and cancel any changes is clearly visible in the publish form when it is in use by an editor in edit mode.
The main file involved in this functionality is the html/objects/editlock.inc which implements the EditLock class.
Oscailt does this by validating the input (in the publish form), by searching for any tags that belong in a pre-configured list of tags. These are defined in html/config/markupconfig.php and making use of the set of functions in html/objects/contentcleaning.inc
It is also possible to allow a limited set of tags to be used by users for publishing and these tend to be tags for line breaks, paragraphs, bold, underline, italics and the small tag directive for font size. If these are not closed they are easier to spot and fix and will not break the HTML table tags used for controlling the site display layout.
In Oscailt 3.1, embedded video has been implemented and the main challenge was to get around the problem of allowing users to enter the object, script and embed tags which are needed for the embedding. The solution is for the users to enter just the video identifier and let Oscailt generate the associated HTML code.
Nevertheless, JavaScript is used in a few places as it is unavoidable and happens to be the best choice in those cases. The areas where it is used are:
To carry out any administrative task, clearly an editor has to be logged into Oscailt, and two of the most important support classes for this are Editor which contains editor details and includes permissions information and the class EditorSession used for handling the editor session and enabling the code to determine if the user is logged in.

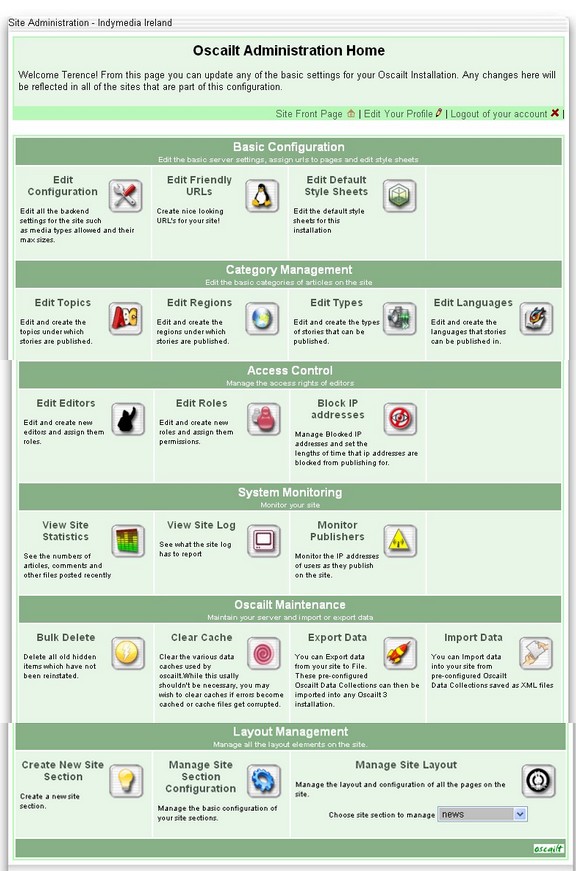

For reference the two images below show the main administration page and the page for accessing the site and module layout configuration.
|
|
| Admin 1. Main Admin Screen | Admin 2. Site Layout Admin Page |
|---|
The most important files for the generation and display of these administration pages are:
-- html Files: admin.php editlanguages.php --| All of these files are
| bulkdelete.php editmonitor.php | linked in the first admin
| clearcache.php editredirects.php | screen image shown above.
| editbannedips.php editregions.php |
| editconfiguration.php editroles.php |
| editedtiors.php edittopics.php |
| editexport.php edittypes.php |
| editimport.php stats.php |
| viewsitelog.php --|
|
|
|____ objects Files: adminpage.inc
| | utilities.inc
| |
| |____ indyobjects Files: indyitemset.inc
| indyobject.inc
|
|
|____ xmldata Files: universal_config_options.xml
| site_management_options.xml
|
|_____ indydatatypes Files: archive.xml article.xml bar.xml basic.xml box.xml
categorylist.xml ...... search.xml site.xml
These are used for the module configuration and layout.
The main logic or functionality for the admin page (implemented and called through
admin.php and adminpage.inc) is to determine and
display:
When any of the basic admin sub-functionality like configuration, editing URLs, editors, roles, regions, types, languages, IP monitoring, blocking IPs, viewing logs, statistics and so forth are required then the php files in the html/ directory listed above are called. See the section on 5.3 Basic Admin Files below for more details about this.
The main execution sequence to display any of the admin pages is:
admin.php --> 1. Create a AdminPageObject ( by calling objects/adminpage.inc )
2. If logged in then call processRequest ( in AdminPageObject )
3. If not logged in, display the login page. |
|
-------------------------------------------------------------
|
\|/
2. (continuation from above)
processRequest --> 1. Call 'load'1 to read a) XML settings for main admin page. (universal_config_options.xml)
b) XML settings for site section admin page. (site_management_options.xml)
2. Determine if displaying main admin page.
If yes then call 'writeAdminPage' --part of AdminPageOject -i.e. draw image 1 above.
3. Determine if displaying site section admin page.
If yes then create a 'indyObjectManager' object passing xmldata/indydatatypes directory
call processRequest of the 'indyObjectManager' object created in step 3.
a) reads the request URL to determine the action
b) create a indyObjectSet to be used for loading all the objects
c) if no action is specified then the request is for the main layout page.
if no action then step d) else step e)
THEN
d) call indyObjectManager->writeIntroPage 2
This calls
i) indyObjectSet->load to load all datatypes from
xmldata/indydatatypes (archive.xml, article.xml ... site.xml)
ii) displays menu options for element, modules and layouts
ELSE
e) Handle admin layout module request ....
4. Determine if displaying Style Sheet Admin page(s).
If yes then call 'writeStyleSheetSection' --part of AdminPageOject
Note 1: In the load to read the XML settings, it actually creates an
IndyItemSet object and calls the
load for that object because that internally is implemented to look for any language translations
versions of the XML files that it is instructed to load.
Note 2: The function writeIntroPage in indyObjectManager has to first load all the data types from directory xmldata/indydatatypes and an indyDataTypeSet is created to hold these. Then all these types are basically validated against the global array variable $legalDataTypes which is initialized in config/datamodules.php This array maps the allowed types into a number of groups which are: site, element, layout and module. It is the last 3 in this list then that the associated titles, descriptions, links and graphics etc are read from the data type XML and displayed as a series of menus in the administration site building main page.
For some clarification of the code details here, this is basically what it inside writeIntroPage() in object indyObjectManager via the call to processRequest from adminpage.inc
writeIntroPage --> 1. Call indyObjectSet->load - to load all data types via a) Call function _loadTypeSet in indyObjectSet -which in turn calls: i) Create a new indyDataTypeSet object. ii) Call indyDataTypeSet->load b) Call function _loadObjectStubsFromDb in indyObjectSet 2. Create a new indyDataTypeSet object 3. Call indyDataTypeSet->load and indyDataTypeSet->loadAllTypeDetails 4. Generate some basic html navigation and headers for admin page. 5. Call writeSiteObjectsMenuSection -writes bulk of screen in 2nd admin image above a) Validate all the datatypes against $legalDataTypes b) write admin page menu header. c) write menu sections for all type that are elements d) write menu sections for all type that are module e) write menu sections for all type that are layout f) write admin page menu footer.
| AdminPageObject | -derived from indyObject (found in objects/indyobjects/indyobject.inc ) |
| indyItemSet | -implemented in objects/indyobjects/indyitemset.inc and derived from indyObject |
| indyObjectSet | -implemented in objects/indyobjects/indyobjectset.inc and extends class indyObject
This manages the datatypes taking care of loading, saving, setting and getting data. |
| indyObjectManager | -implemented in objects/indyobjects/indyobjectmanager.inc and derived from indyObject
Users of this object:
|
| indyObjectActionRequest | -implemented in objects/indyobjects/indyobjectactionrequest.inc and derived from indyObject
This object seems to deal with managing permissions and locks associated with 'actions' |
| indyDataTypeSet | -implemented in objects/indyobjects/indydatatype.inc and derived from indyObject |
For example in the main admin page, the first section is called: Basic Configuration and it contains 3 items which are: Edit Configuration, Edit Friendly URLs and Edit Default Style Sheets.
If we look in universal_config_options.xml we can see that the title and the 3 elements belonging to it are controlled or rather specified by these XML sections labelled:
<item name="main_title" type="string">
<title>Basic Configuration<title>
</item>
<item name="editconfiguration" type="mainaction">
....
</item>
<item name="editredirects" type="mainaction">
....
</item>
<item name="editstylesheets" type="mainaction">
....
</item>
You will notice that while this is quite flexible it has not be made fully so, because in the code, it is still
hardcoded to explicitly look for the main_title item and then the set of main_actions. It would
probably have been more consistent to define these in the XML file as sub-sections of the main_title item.
This is the case with all the other items and components on the administration pages and it might be something that could be more fully implemented in the future. Any changes though would need to keep in mind any possible impacts that might occur elsewhere in the code and the value of it. On the one hand it would make those sections more understandable in the XML files because at the moment you need to both be familiar with the PHP code and the XML to understand both. Putting more structure into the XML definition could risk making the code even harder to understand especially if documentation and comments are not supplied.
There is no need to explain the rest of this XML file or the other one because the same strategy or design is used throughout and it should now be easy to follow to understand.
| archive.xml article.xml bar.xml basic.xml box.xml categorylist.xml citylist.xml | codebox.xml comments.xml contact.xml document.xml events.xml feature.xml feedexport.xml | feedimport.xml filterbox.xml gallery.xml headlinebox.xml link.xml list.xml menu.xml | newswire.xml page.xml picturebox.xml preferences.xml publish.xml search.xml site.xml |
| bulkdelete.php | -implements the bulk delete of old hidden stories and comments. Shows some basic hidden story and comment statistics. |
| clearcache.php | -this can clear any one or all of the different caches. Contains a very simple screen. |
| |
|
| editbannedauthors.php | -implements the ban names screen. Works with class BannedAuthor and BannedAuthorList. This was introduced in Oscailt 3.1 |
| editbannedips.php | -implements the ban IP screen. Works with class BannedIP and BannedIPList. |
| editmonitor.php | -implements the IP monitor which has a very simple screen. It uses the classes PublishMonitor and PublishMonitorEntry. |
| editredirects.php | -implements the screen for adding and editing Friendly URLs. It has some additional sub-screens. Use classes RedirectList. |
| editconfiguration.php | -this implements the basic site configuration covering site name, number of allowed uploads and images sizes etc. It is a fairly simple screen and needs to read and write to the Db. |
| |
|
| editeditors.php | -implements the creation of new editors or users. Also includes basic editing of information like name, password and email address. |
| editroles.php | -implements the screen for adding and modifying editor roles. This is relatively complex. |
| |
|
| editlanguages.php | -implements the screen for adding new languages to the system. |
| editregions.php | -implements the screen for adding new regions like counties. It includes the code for the add and delete |
| edittopics.php | -implements the screen for adding new topics -i.e. subject categories for stories. This is functionality very similar for region and types. |
| edittypes.php | -implements the screen for adding new types. This would be rarely used as the system already comes with news, press release, feature, opinion analysis and event. |
| |
|
| editimport.php | -implements the screen for importing objects. This will generally be used during site creation, and rarely otherwise. |
| editexport.php | -implements the screen for exporting objects for sharing with other sites or for other reasons. It is not likely to be used very often. |
| |
|
| editorstatus.php | -implements the screen for displaying whether editors are logged in and shows any posted messages. It also allows editors to post messages for other editors to see in real time. This was introduced in Oscailt 3.1 |
| |
|
| stats.php | -implements the screen for basic statistics on stories and comments. It simply executes a bunch of SQL statements and displays the results. Works with class Statistics. The statistics reported has been expanded for the next release. |
| viewsitelog.php | -implements a simple screen for viewing a page at a time of any one of the three system log files: sitelog.txt, actionlog.txt and securitylog.txt This has been greatly expanded for the next release. See section on Logging below. |
| adminfooter.inc | -included by all the administration (php) files for administration screens. See the subsection below on this. |
| footer.inc | -included by index.php and adminfooter.inc. It simply contains the closing tags for BODY and HTML tags. |
| footerprint.inc | -writes the URL of the print page and the end of the page, closes HTML tags and disconnects from the database. |
| |
|
| header.inc | -contains the contents of the HEAD section for the HTML page returned. Used by index.php. It fills in the meta tags, references style sheets, sets character set and the page title. |
| headerprint.inc | -basically same as above but references the style sheets used for printing. |
| |
|
| oscailt_init.inc | -Includes most of the .inc files in the objects/ directory and initializes the main global variables and creates object instances (for basic things like redirects, topics, regions, types, language) and reads and sets some of the HTTP request variables. |
| oscailt_destroy.inc | -Disconnects from the database. |
| |
|
| rescueheader.inc | -Contains a basic html HEAD section used by rescue page. |
| rescuepage.inc | -This gets called by most of the administration pages, and draws the outer table in which admin layout sits. It echos the buffered page contents in the middle of this table. This page is called also when no layout page has been found for a module. |
ob_start();
Do admin stuff + functionality
(Inside adminfooter.inc)
$PAGE_CONTENTS = ob_get_contents();
ob_end_clean();
.
.
require("rescueheader.inc");
require("rescuepage.inc"); -This file draws a table and echo's $PAGE_CONTENTS in the middle of it.
require("oscailt_destroy.inc"); -Close any db connections.
require("footer.inc"); -Close BODY AND HTML tags.
Note: In a later version of Oscailt the Topics, Regions and Types categories may be succeeded by tags.
It is implemented largely through the two files: html/editmonitor.php which mainly handles the display and html/objects/publishmonitor.php which handles creating and saving the entries. There is a maximum of around 50 entries or so saved and these are stored in the cache in the file html/cache/publishmonitorcache.inc . This is in fact a PHP file. It simply contains PHP code that creates an instance of the PublicMonitorEntry class. All of these are then stored as an array of these objects in the PublicMonitor class which is then handled by the display. Since there is not much data, it is fairly easy to follow the code.
The other main but small part of it is some code in the publish module (publishdisplay.inc) which contains code to write the entries for a story or comment whenever the monitor is active.
Note: In Oscailt 3.1, code has been added to specify a duration to keep the monitor turned on, after which period it will shut off automatically.
In the first method, the IPs are held in a string variable and as each request is received, the incoming IP address is matched for any of the entries in the list and if they match they are redirected to another (preconfigured) site. This redirect banned url is configurable from the administration system.
In the second method, IP banning works by adding an IP to be banned to the database. Whenever a request for a publish (of a story or comment) is received the list of banned IPs is automatically loaded into an array (of banned objects) and the IP address is matched against this list and used to determine whether to disallow that user.
For every other publish operation, the banned list is scanned to remove any entries that have now expired.
It turns out that most of the functionality is for dealing with the display of the IP banned list from the administration screen and enabling editors to add, edit and remove IP bans. However this code is relatively straight forward and it can be found in the two files: editbannedips.php, bannedip.inc and adminutilities.php. The table for storing banned IP information is: BANNED_IPS.
This function will appear in the next release of Oscailt (3.1).
Most of the functionality is implemented within the files: editorstatus.php and publishstate.inc. There were also changes made to editorsession.inc at the point where users login and logout so that entries could be written to the cache/publishstatecache.inc file to track these.
Further functionality could be added at the point where editors carry out editorial actions like hide or edit. These would have to be written to the file above and then could be reported, although the value of this is questionable so it is currently not done. If it is, then that part could be made configurable.
For logged in editors, the index.php makes a call to oscailt_msg.inc which scans the contents of the Oscailt message cache to determine if there is an unread message by that editor and if there is generates a notification message at the top of the page. However, the capability of this functionality is limited by the cache size which is configurable.
For an Oscailt installation with many users, the limitations of this messaging system would become clear.
With Oscailt 3.x a fairly big effort has been made to make it easy to translate most of the text strings visible on the public site and this has been done by allowing much of the text to be configurable through XML files. This is generally the standard way of doing these things now.
When a page is requested Oscailt tries to determine the language to see if the variable userlanguage is set in any of the $_GET, $_POST or $_REQUEST variables. If not it will try and use the value, if set, in the http header via $_SERVER['HTTP_ACCEPT_LANGUAGE']. This means that you can override your browser language setting if say it was set to Spanish, by adding 'userlanguage=en' to the request URL to request an English version of a page.
In general Oscailt will then use the language two character code to look for language specific files in the object cache to serve back the appropriate language version page. These do require that they have been generated in the first place in the Oscailt administration and layout interface. For more about this, see the sections that follow.
OBJECT_ID LANGUAGE_CODE
54 en
54 fr
54 es
As part of this mechanism to support languages, Oscailt has introduced for each object type, the concept of a master page and then individual language specific pages. The master page can also serve as a type of reference and there is some overlap between this functionality and the language specific functionality. Internally for every instance of an object created a single entry is made in the MASTER_DATA_OBJECTS table and then as described above, then for each slave or language specific version of that object there are entries in the DATA_OBJECTS table. So if there is only one language in use, then the number of rows in each table will be the same.
There may be some confusion between language versions of the modules themselves and language versions of the administration screens for configuring each of the modules. For the latter see the section 6.3.1 Language Versions of Administration Layout Pages below
Note: There may still be a few strings in the modules that are hard coded in English and later versions of Oscailt will have to deal with these.
If you plan on using character sets other than the default character set iso-8859-1 then see the section on 6.4 General Language Support Background and 6.5 Unicode Support below.
The administration pages do not have full language support and currently only the main administration page, the individual layout pages and the administration options on the public site for actions like hide, edit, delete etc can be translated.
The individual administration screen/pages cannot be translated as the text strings are currently hard coded. e.g. configuration, statistics, clear cache etc.
The main files where text exist that needs to be translated are as follows:
This covers some of the following areas:
<indyItemSet language="fr" name="universal_config_options">Likewise for the action pages xmldata/itemcache/hide.inc in the French version would be xmldata/itemcache/hide_fr.inc.
This directory contains all the labels, titles and description text strings for the different modules such as article, newswire, comments, features etc display modules. To create for example a language specific version of the administration layout page for the newswire module, in say Spanish, you need to have a Spanish version of the newswire.xml file. Then when Oscailt recognises that a browser's language is set to Spanish it will automatically display those versions by looking for XML files with the 'es' suffix.
So for this example using the language code es for Spanish, you need to create a XML file (for the newswire) with the name:
<indyType type="newswire" name="Newswire Module" language="es" version="1.0">To translate the other modules a similar pattern is used and for other languages, you use the languge code in both the filename and within the file for the language code. It is important to make use that it corresponds to the code that is configured in the Edit Languages administration page and it makes sense to use the defacto standards such as fr for French, de for German and so on.
There may still be a few strings in the modules that are hard coded in English and latter versions of Oscailt will have to deal with these.
Language display and character sets are quite a complicated thing for a php site.
In most cases the Latin character set should be enough for most if not all Spanish character sets, but generally UTF-8 is the best choice for any multilingual application.
To get it working correctly, you need to:
You can tell what the web server is using by checking a page downloaded from it and in the case the FireFox browser right click and View Page Info and look for Encoding which may well be set to UTF-8. To find what the HTML is using, one can view source and the HTML may have a line something like, but there is no guarantee that it will be set.
<meta http-equiv=Content-Type content="text/html; charset=iso-8859-1">To change this to UTF-8, then the header needs to be changed and in the case of Oscailt, this would require changing the file header.inc to:
content="text/html; charset=UTF-8"Make sure that this meta tag is before the <Title> tag in the HEAD section.
The rest is tricky. See the links to language resources in 15.6 Unicode and UTF-8 at the end of this document.
Moving to Unicode would mean adopting the UTF-8 character set throughout Oscailt including the MySQL database. This would mean all pages served would use the UTF-8 character set and all form input, RSS feeds and data storage as mentioned already.
It is very likely that hosting server would have to have PHP 5+ installed as any earlier versions could potentially create too many problems. Also carefull consideration would be needed for migrating data on existing sites especially if any of this data is stored in any character set other than the (default) ISO-8859-1.
The set of files in html/objects/indyruntime/*.inc which deal with the display side of most of the module classes also contain a fair amount of displayable strings that should be translated but at the moment are not separated out, into a form that would make this task relatively easy.
For the reported posts links are also provided to the reported articles and a hide status is attempted for the most recent reported posts.
For the Spam Mail, a method exists to select a message for forwarding to the email lists configured in the main administration configuration page. This would be used for retrieving valid email that got caught in the spam filter.
These files are written from various points within Oscailt and html/objects/utilities.inc contains a number of basic utility functions for writing log entries. The following sub-sections detail what is contained in each of the various types of log files.
-- html
|____ cache
|________ querycache (stores oml and sql cache files)
|________ rsscache
and where the files names are of the form: <RndNumber>.<cache-type>cache
The random number used as part of the filename is not really random but comes from the md5 hash algorithm.
It makes use of the RSA algorithm and the 'number' is a 32 character hexadecimal number which is returned when
the query itself is presented to the algorithm. This is all built into PHP, so
basically one does not have to worry about it, because it manages and maps the numbers to the incoming query.
The OML cache seems to consist of only one file, while the SQL cache can contain thousands of files due to all the
potentially different queries. Example filenames are:
40df8e81072af5042370a81c21abdc67.omlcache
7fc1ca538846a21c5f01741aa07932d1.sqlcache
ea1970b80aa131fb6881593d8efc2579.sqlcache
c74618490f38c08e2f2b1a34c072a13c.sqlcache
The basic functionality provided by this object is to create, get, delete entries and clear the cache. It can also return the time of a cache entry which would by used by the SQL cache for timeouts, although it does really timeout except if a database error message itself was cached.
sql_query --> 1. IF this query starts with 'SELECT' THEN
a) Is caching enabled AND is cache valid?
b) getCachedData (in QueryCache object) -see below
c) If cache returned okay
i) Check cache not older than cache-timeout
ii) If too old, mark as cache result not found
d) If cache result not found
i) If no database connection THEN connect to database
ii) Pass query to database layer.
iii) Cache the result.
2. ELSE it must be an INSERT or UPDATE
a) Invalidate the cache -marked to be cleared later.
b) If no database connection THEN connect to database
c) Pass query to database layer.
b. (continuation from above)
getCachedData --> 1. Generate hash-key via call to md5 PHP function with input query string.
2. Generate full path and filename from hash-key and query type and configured path.
3. If file exists then read the data in the file.
a) If file found then RETURN cached results.
b) If file NOT found then RETURN NULL
The sql-layer contains some basic debugging which can be turned on by setting:
$sql_debug = 1 in file config/systemconfig.php
Note: You can determine the maximum number of database connections configured in MySQL by issuing the command:
SHOW VARIABLESfrom within MySQL.
A possible solution is to re-write the cache and to implement a much more complicated one that takes account of the different types of actions and is aware of the different types of query. This would probably take the form of dividing the cache up into different areas like: public, configuration, site admin and editor actions and only if an action overlapped into one of the other sections would it's section of the cache be rebuilt.
The effect would be to cut down on the number of times the whole cache is invalidated and when it is invalidated only parts of the cache would need to be rebuilt. This would allow it to recover quicker than at present and thereby keep the number of database connections lower.
1 config: configuration, languages, topics, regions, types, banned_ips, editor_roles,
roles, role_permissions, editors
changes: Clear 1, 2, 3, 4
2 stories + comments: stories, comments, attachments
changes: Clear 2
3 locks: edit_locks
changes: Clear 3
4 site layout: data_objects, master_data_objects
changes: Clear 1, 2, 3, 4
5 statistics: statistics querys older for data older than 1 month
changes: Clear 5
The main code changes were to pass a (cache) group number whenever a call was made to the database layer and then some changes were made at the database layer and querycache for the file naming and invalidation of the cache. The cache file naming has been changed slightly to:
<RndNumber>.<cache-type><cache-group>cache
7fc1ca538846a21c5f01741aa07932d1.sql1cache
ea1970b80aa131fb6881593d8efc2579.sql2cache
c74618490f38c08e2f2b1a34c072a13c.sql3cache
d23418490f384543542b1a34c072a13c.sql4cache
cache/imagecache/local/attachments/jan2006
cache/imagecache/local/attachments/feb2006
....
cache/imagecache/local/attachments/dec2006
Two important functions that refer to the image_cache variable are
getAttachmentFileFromCacheFile (object/utilities.inc) and
getTransformedImageURL (file object/imagetool.inc, class
ImageTool)
The other caches used by Oscailt are for: namecache, typedetails, redirect and publishmonitorcache.inc cache. A further cache exists called publishstatecache.inc which will be available in the next release and is used by the user status and editor messaging facility.
The name cache is used by the administration layout pages and is cache of each object id and it's name which gets displayed in the administration page. It is cached because otherwise the full content of each object would have to be read from the database to get the object name.

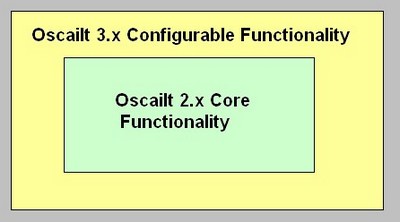

With Oscailt 3.x the administration functionality is very similar for stories and comments as in Oscailt 2.x, but the administration for the configuration is more extensive whilst the site layout and design is new. There are now numerous different permissions for carrying out all sorts of different actions whether that be edits, hides, upgrades and the various new administration functions to do with configuration and layout.
In addition roles or levels of permissions, have been introduced so that different user accounts can be set up with different sets of permissions known as roles. By separating out the roles it means you can define a role for different types of users and then easily assign and maintain these roles, otherwise you would have to keep track a lot of different permissions for each user. Clearly though it is important to name and describe the roles otherwise it can make things even more confusing and complicated.
As if this is not flexible enough, roles are divided up into one of three types. These are:
So to help explain this further, we might have 3 types of users. Lets say we have an Administrators (admin_user) with access to everything, a site moderator (mod_user1) who can hide, delete, edit and featurize stories and a feature writer (feature_user1) who writes just features. Then for this example, we might define 3 roles as: total administrator, full editorial, moderator and a feature writer. We then would assign the roles to user as:
In the case of the site builder role the above function loads up all object types by reading the xmldata\indydataclasses directory and generates: create, delete and edit options for each object type in addition to the approximately 4 predefined permission options in the array for it. This is done because it enables the system to assign create, delete and edit permissions to each object type.
When the permissions and roles are set for an editor, this data then gets storied to the database for that editor and later when that editor logins in, this information is read from the database and held in memory in the editorrole and editorpermission objects which are instances of classes of the same name.
if($editor_session->editor->allowedReadAccessTo("edittopics"))
{
Load and display topics.
}
For the editorial permissions it is not so simple. This is because it covers the functionality for story and comment edits, hides, unhides, deletes, clip, unclip, upgrade, downgrade and feature options and the implementation of these now resides deep inside objects like html/objects/indyruntime/articledisplay.inc which displays these options and html/objects/indyruntime/managingdisplay.inc which manages the option and handling of permissions and calling the appropriate procedures for carrying out the editorial actions. This latter file is help by the functionality in html/objects/itemaction.inc
The contact form has had extra functionality added to it to improve the validation and to implement anti spam measures. This has taken the form of adding basic encryption to some of the form fields and addition of other mandatory hidden fields. As part of this measures there is validation on some of the incoming request header parameters. Dealing with spam is a moving target and probably the best approach is to deploy an array of barriers rather than any one technique. Also added has been configurable options to log requests that have been judged to be spam and when operating in reported post mode, it will not log these requests in a special format that can be viewed by the view logs facility from within the administration side of Oscailt.
- xmldata/indydatatypes/contact.xml -This file contains categories that will be displayed in the page layout for this option. This file can be added to, to add new functionality.
- objects/indyobjects/indydataclasses/indycontact.inc -This next file is...
- objects/indyruntime/contactdisplay.inc -This file implements the bulk of the contact form functionality. It handles the display and all related requests such as when the form is submitted and then the validation and final sending of the email. The configuration and associated string objects for text are read.
The publish form is also used by Oscailt editors when logged in to edit stories, features and comments and it must therefore be able to read the contents of a story or comment and preload the appropriate fields.
The publish form also works in another mode where it can accept input for uploading files. In this mode, one cannot proceed to the preview mode because of the nature of the HTML form field of type file which does not allow the value to be set by the browser in advance or by Javascript as it would be a big security hole. This means on the preview cycle, the form can't remember and then refill this field.
Then as a further complication, depending on whether story or comment is being published, not all panels or sections are displayed, with comments have fewer fields to fill in. Lastly, Oscailt allows editors to edit stories and comments, and to do this it makes use of the publish form. This means that it has to be able to distinguish between the a new story or comment and the editing of an existing story or comment.
- xmldata/indydatatypes/publish.xml -This file contains categories that will be displayed in the page layout for this option. This file has to be modified if new functionality or other options are to be made available in the module definition. For the publish form, this is quite a big file compared to the other ones because of the large number of items.
- objects/indyobjects/indydataclasses/indypublish.inc -This is used during code cache execution to populate the various arrays of choices and options made during the module definition for a particular instance of this class.
- objects/indyruntime/publishdisplay.inc -This file implements the bulk of the publish form functionality. It handles the display and all related requests such as when the form is submitted and then the validation and final sending of the email. The configuration and associated string objects which are contained within the code cache file for that object are read from within this.
Most of the other form fields are also configurable as to whether they appear or not. All of the text and titles, prompts, headings and help tips are also configurable at module level (through the admin site layout screens). This is to facilitate both multiple languages and customisation.
Stories and or comments published can also be configured to be automatically hidden and even publishing itself can be turned on or off for the public but remain active for editors, which makes for a very versatile system.
When a form is submitted for preview there are multiple checks that have to be made from validation on all the fields to ensure that they are filled in, checks for banned IPs, checks for a valid publishing token, to edit lock checks and checks on attachments sizes.
Originally events were the 5th story type to be added to Oscailt, so there may be places in the code where it is still hard coded to check type_id==5.
A considerable amount of code effort is required to generate these and ensure that invalid values are detected and appropriate defaults used. For example, the code must check that the user does not try to go back to before the time for the first story / event in the database.
The monthly display mode can show up to three separate months of events and these are grouped accordingly, with past, present and future events get different display colours through specifying different classes from the style sheets. Recent changes have included detection of zero events for the current day, but still displaying a message to that effect. Other features include hiding past events, so that "today's " events don't appear way down the page. This can be toggled.
For weekly and bi-weekly code the same function is used with a certain amount of duplication within it. The tricky part is generating the correct forward and backward links as month and year boundaries are crossed. The weekly/biweekly mode high-lights the current day of the week and this requires effort in the default mode to work out which should be the first date to display and again account for going back to previous months.
- xmldata/indydatatypes/events.xml -This file contains categories that will be displayed in the page layout for this option. This file has to be modified if new functionality or other options are to be made available in the module definition.
- objects/indyobjects/indydataclasses/indyevents.inc -This is used during code cache execution to populate the various arrays of choices and options made during the module definition for a particular instance of this class.
- objects/indyruntime/eventsdisplay.inc -This file implements the bulk of the functionality for display events. It handles monthly, bi-weekly and weekly display modes, including the request handling for managing this.
There are certain areas of Oscailt which are harder to change than others because they are tightly integrated while others areas are relatively independent and thus easier to change. Examples of the latter are much of the Administration functionality like viewing log files, the IP monitor, configuration changes, editing editors, roles, types, regions, statistics, bulk deletes. The publish form is another example of a module that is not too tightly coupled with the rest of the system. In all of these cases the bulk of the functionality is implemented in just one file.
Examples of changes that require more effort are any additions to the story and newswire modules and any associated functionality like display and editorial actions. (e.g. hide, edit). It is probably relatively easy to hack the code and just add in whatever changes you wish, but this will mean that it is not very configurable and it disrupts the ability to make the code language dependent.
Then as changes are made they can be tested and refined. The tricky part is re-integrating the code and ensuring that debug type information is removed and any other special hacks. It is also important to be careful with the various versions that you have in development as experience shows they can rapidly drift apart from the main code base. Tools such as WinDiff can prove to be very useful in that regard.
It is even more ideal to have a second installation where the sanitized code is kept up to date with changes from CVS so that it can be used as a final test site. Keeping a discipline in that regard can often be the biggest barrier.
The use of style sheets allow great flexibility in the look and feel to the site but since there are so many classes now present these really need to be documented and their usage in the code should be made consistent to ensure that when colours and fonts are changed the results are predictable.
There are some style sheets in the Oscailt CVS under the path html/graphics/ but these do not seem to be the ones used and instead there is a default configuration pointing to the directory html/attachments/sites/default/ where the following three files can be edited through the Administration interface.
Object programming was introduced in the late 80s / early 90s and was quite a break from existing procedural languages. With object programming you can define objects that represent particular things and combine the data and code together. Then if you want a whole pile of these things, you just create a whole pile of the same object types. And if you then want to define something new but similar to something you already have, then the idea is that you can extend the object and create a new type derived from an existing one you have and at the same time build on any of the code you have written and data you have defined for that object.
class Story
and or
class Comment
It can be seen that for a given story there could be say 20 comments and by using objects we can create a
story object and then retrieve the 20 comments belonging to it and create a comment object for each one.
We would probably write or define a class for story so that it expects to contain or hold one or more
comment objects.
The interesting thing about these functions is that you use the same name over and over again for different classes. So your story and comment classes might both have functions called load and display. In theory this makes it easier, because you would expect these kind of functions. This is often referred to as overriding the function. The advantage over a procedural language is that you would have to put in say your display code some kind of variable to tell you what you are displaying and then basically divide the code internally up into two parts. With objects as can be seen everything is kept nice and separate. And with programming clarity is the name of the game.
Typically it is general programming convention for any object to provide what are called: set and get accessor functions. This really means that rather than getting data inside an object directly and manipulating it, you provide functions something like, say for the data called:type
function getType()
{
return $this->type;
}
function setType( $value)
{
$this->type = $value
}
The functions will often be as simple as this and at other times more complicated. At times it may seem like
overkill but once again it is essential discipline to maintain demarcation between the inside and outside of
objects.
$story_obj = new Story( $id ) .... do other stuff as neccessary ... $story_obj->display();As we can see it is: objectInstance->functionName() If you are within an object and you want to call one of the functions belonging to that object then it is general convention to self-refer to this object with the this keyword. The example here shows how you can refer to both data and call a function.
$this->$directory_path_to_data = "xmldata\blah_blah\" $this->load( $this->$directory_path_to_data );You will see plenty examples of that sort of thing throughout the Oscailt code.
In other languages like C++ object data can be defined as public, private or 'friendly'. The first two are obvious whilst the third is somewhere in between and not worth going into since we don't have to worry about it here.
When you inherit or extend as the terminology is in PHP, then you automatically get all the data and functions in the classes that you have inherited or extended. That means you only have to write the extra code and include any additional data that you need. In some cases you may rewrite some of the functions to do something different. If you do the latter PHP will know about it and will not get confused about which one to call, because the one you define will take precedence over the one in the base class.
The syntax with an example for class inheritance in PHP is:
class myNewClass extends AnExistingClass
class filterDisplay extends displayObject
A problem that continually causes problem with new users of Oscailt is that they have the problem where any special characters are preceded by a slash ('\') which generates more in turn. The solution is the PHP 'magic quotes' setting which apparently can be controlled from .htaccess apache file.
For Windows PCs, a reasonably good tool to use is WinCVS.
When working with SourceForge CVS, you need to generate a SSH key which consists of a public and private key and you upload a copy of the public key to SourceForge.
Note:
lf: Linefeed (hex 0x0A)
cr: Carrige Return (hex 0x0D)
Last updated: June 2008
